Pure Sound, Pure Pleasure
With Telos 800 high-end amplifier, you’re not just buying a device; you’re investing in a ticket to a world where music transcends the boundaries of imagination. Imagine feeling the pulse of the bass thumping through your veins, the crisp highs sending shivers down your spine, and the mid-tones caressing your senses like a gentle breeze. This isn’t just sound; this is an experience that awakens your soul.
Hear Every Detail
Crafted to effortlessly drive a pair of passive loudspeakers, the Telos 800 Stereo Power Amp amplifies the audio signal from your chosen audio sources to deliver robust sound at high volumes without compromising signal integrity. To achieve the pinnacle of performance from your hifi passive speaker system, using a high-fidelity preamplifier is essential.
Sonic Purity, Amplified
Amplifying Excellence
Featuring a distortion rate of less than 0.05% across IMD and THD+N measurements, and an output noise floor below 3 μV from 20 Hz to 20 kHz, the Telos 800 promises an immersive listening experience and a flawless sound reproduction. With a dynamic range of 110 dB and a damping factor of 600 at 1 kHz / 8 Ω, every subtle nuance of sound is delivered with unparalleled precision and clarity.
Beyond Listening

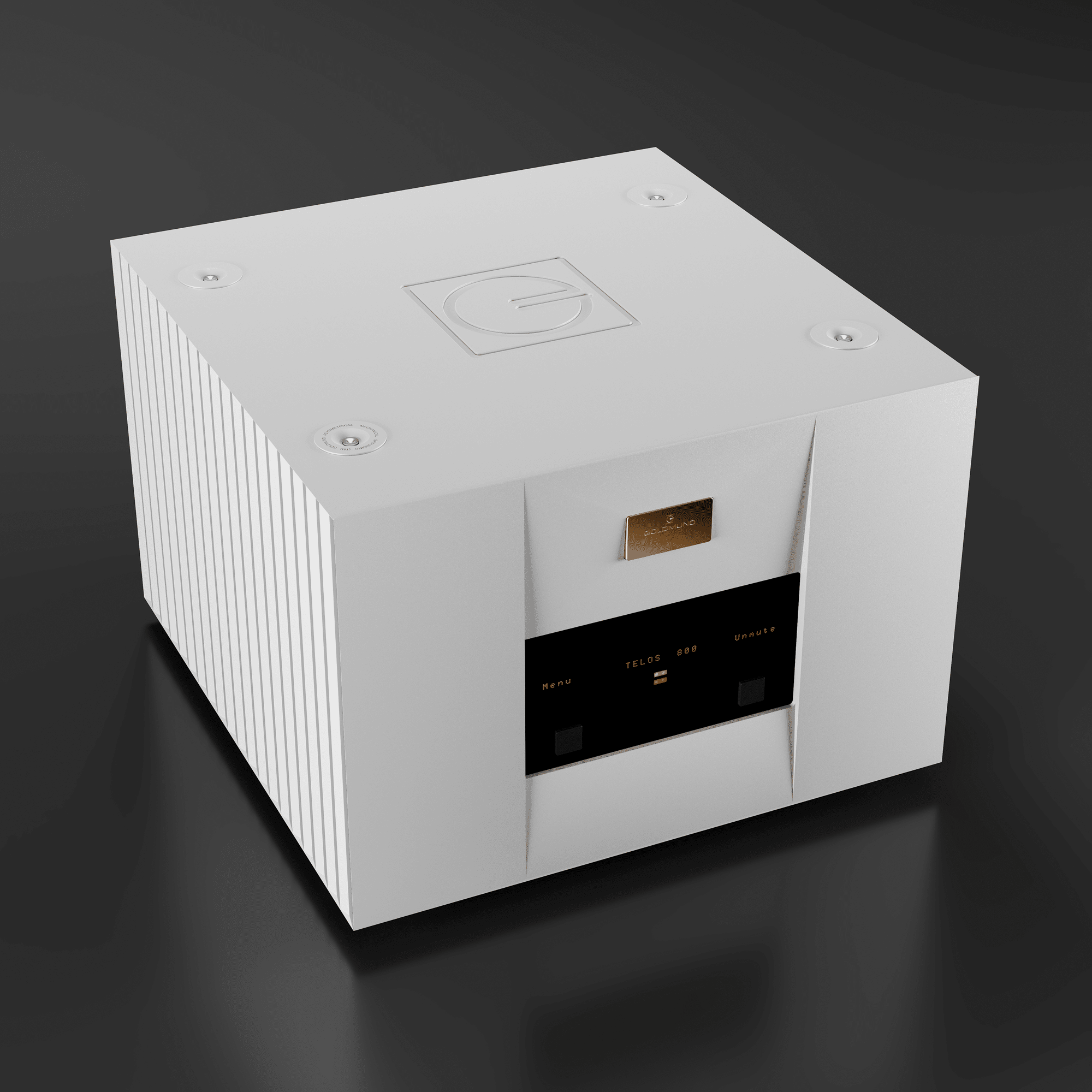

Presented in Goldmund’s iconic silver-gray finish for its standard edition, the Telos 800 exudes sophistication. For those seeking personalized elegance, a golden ring option is available to replace the silver-gray ring on the top left front, allowing for a bespoke touch to suit individual preferences. Goldmund also offers a Black Version of the Telos 800, available on demand.
A World of Sonic Brilliance
Nominal line voltage: 115 V or 230 V, 8A slow-blow fuse
Input voltage range: +/- 10 %
3200 VA Toroidal Power Transformer
Capacitor bank: 93’600 μF
RATED POWER CONSUMPTION
IEC 62368-1, 1/8 Output Power at 8 Ω: 335 W

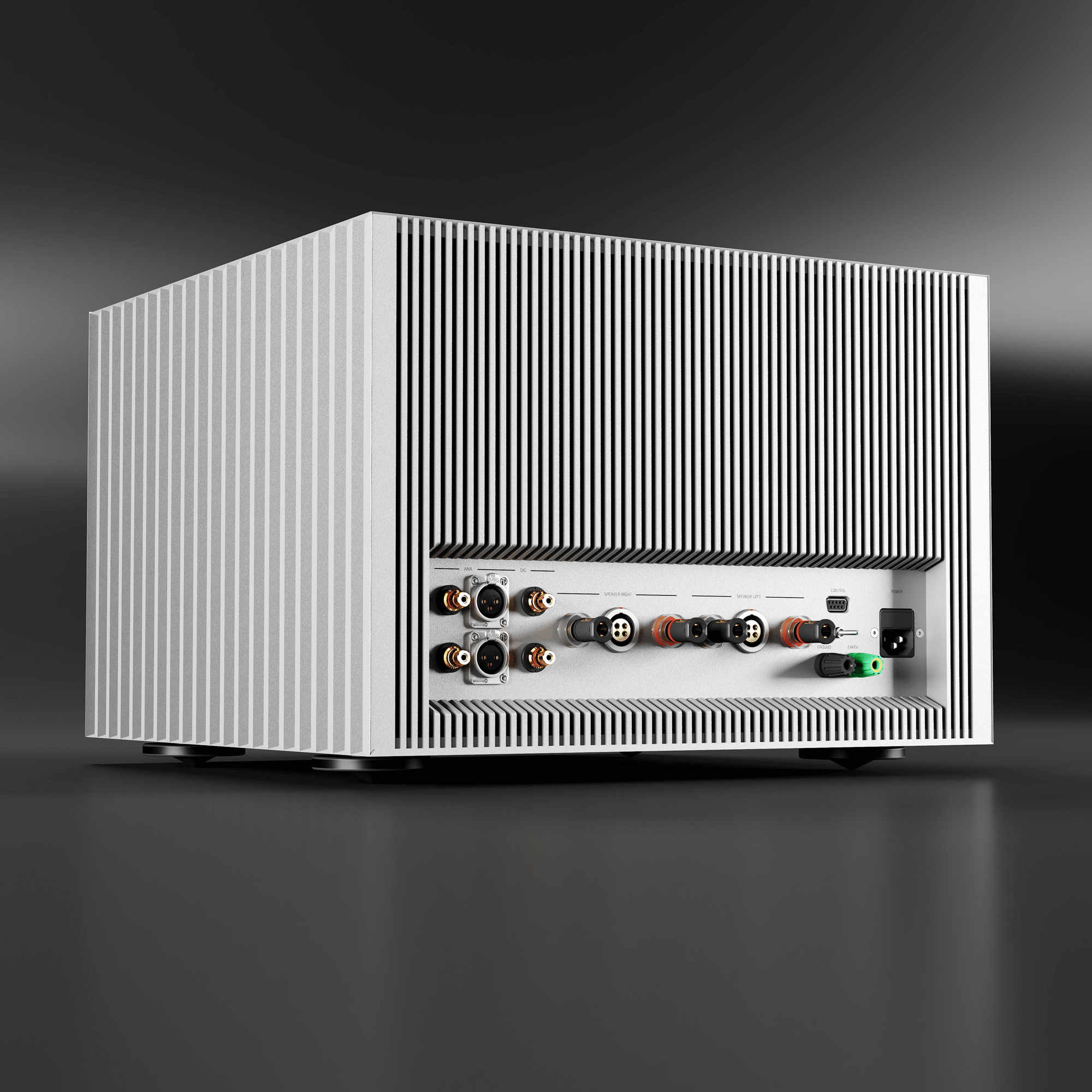

REAR PANEL
1 x Power cord: universal socket 3 lugs
1 x Main fuse (8 A slow-blow for 115V & 230 V)
1 x Green-yellow AC earth binding post (with bridge connection)
1 x Black ground binding post (with bridge connection)
1 x Ground/Earth lift switch
4 x output binding posts (2x red & 2x black ; Left & Right speaker Output)
2 x output Goldmund speaker 4B type connector (Left & Right speaker Output)
2 x Analogue RCA input (unbalanced connector, Left & Right)
2 x Analogue XLR input (balanced connector, Left & Right)
1 x Digital input and output RCA connectors
1 x RS232 command connector
INPUT
Max level before clipping, Analogue input: 1 Vrms
Max level before clipping, Digital input: -6 dBFS
OUTPUT
Max level before clipping, 1 % THD, unloaded: 170 Vpp
OUTPUT POWER
Maximum power (62368-1):
· 2 x 300 Wrms on 8 Ω / 1 % THD
· 2 x 390 Wrms on 4 Ω / 1 % THD
DISTORTION
IMD (SMPTE), unloaded: < 0.05 %
THD+N, unloaded: < 0.05 % from 20 Hz to 20 kHz at 30 Vrms output
OUTPUT NOISE FLOOR
Analogue input terminated with RCA Shorting Caps, unloaded: < 3 μV from
20 Hz to 20 kHz
GAIN
35 dB
DYNAMIC RANGE
22 kHz measurement bandwidth (flat), true RMS unloaded: 110 dB
DAMPING FACTOR
600 at 1 kHz / 8 Ω
44 W x 32 H x 45.2 D (cm) – 17.3 W x 13 H x
17.8 D (inch)
57 kg
COLOR
Standard
Silver-gray with top gray ring
Custom
Silver-gray with top gold ring
Black matte with top black ring
Black matte with top gold ring
